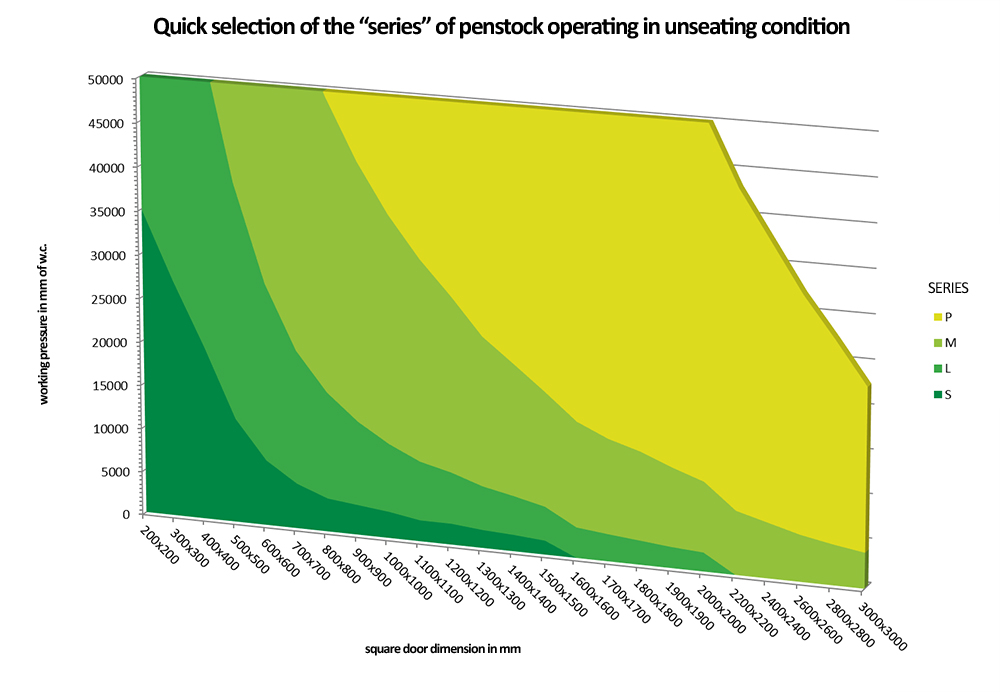

The diagram indicates a quick selection of the series of penstocks operating in “UNSEATING” condition, i.e. water pressure forcing the door away from the frame.
The diagram is related to square door penstocks with width and height equal to each other, but SERECO production is available for any rectangular opening.
SERECO’s technicians are available to identify and recommend the most suitable series, starting from the conditions, applications and specifications of the client.
