P2V4 PENSTOCK WITH SEAL ON 4 SIDES AND MOVED WITH 2 SCREWS
Penstock model P2V4

DESCRIPTION

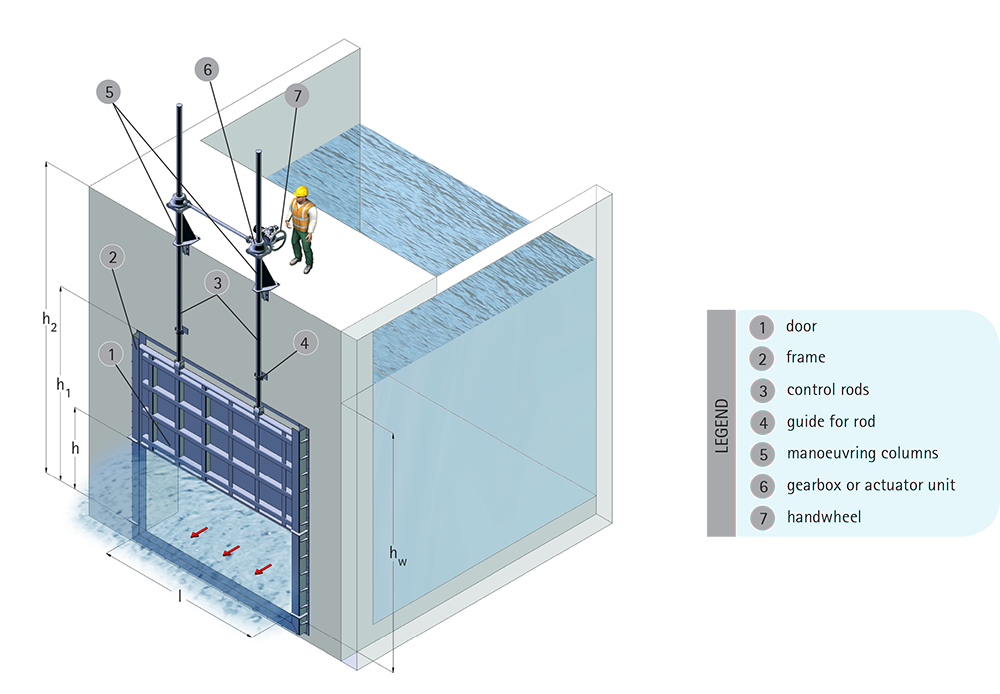

P2V4 model is a penstock with seal on all the four sides. It is generally used for wall installation where it is necessary to intercept and control the flow of fluid from inlet or outlet having different geometric section.

Compared to PV4 model this penstock is equipped with a double lifting screw and therefore it is suitable for sizes with a width equal to 1,5 times the height.
When operating, the penstock slides perpendicularly to the direction of the flow and it is moved by the double screw by means of selected control units.

The seal is given by the rubber gaskets, in both directions, together with the wedges that exerting an horizontal thrust on the sealing surfaces only when the penstock is closed, facilitate the opening and closing of it.
The tables give an indication of the manoeuvring force, the hydraulic thrust and the weights of P2V4 model. TABLE A refers to penstocks with “unseating” head and TABLE B refers to penstocks with “seating” head.

STRENGHTS

  • POSSIBILITY TO MANUFACTURE PENSTOCKS OF BIG DIMENSIONS;
  • EASE OF OPERATION;
  • EXTREME STURDINESS;
  • COMPUTERIZED SIZING FOR A GOOD QUALITY-PRICE RATIO;
  • EACH PENSTOCK IS RECALCULATED EACH TIME ACCORDING TO CLIENT’S REQUESTS;
  • OPTIMUM HYDRAULIC SEAL ON THREE SIDES.

Unseating head

- Table A -

l
mm		 h
mm		 hwmm
1000 2000 3000 4000 5000 7500 10000 15000 20000
kg Nm kg Nm kg Nm kg Nm kg Nm kg Nm kg Nm kg Nm kg Nm
2000 1000 462 80 673 229 837 207 908 283 924 359 946 548 1244 903 1600 3452 1414 2481
2500 1000 653 104 944 162 1052 256 1048 349 1086 444 1124 826 1467 1122 1887 4287 1742 3087
2500 1500 841 153 1190 195 1252 331 1242 463 1301 730 1667 1140 1742 1546 1991 3212 2176 4777
2500 2000 1091 200 1394 209 1552 474 1610 687 1554 893 1995 1676 2139 2649 2447 4518 2683 6975
3000 1000 1028 83 1150 192 1186 371 1264 511 1517 653 1681 1181 1775 1828 1941 3054 2077 4665
3000 2000 1621 149 1623 251 1810 567 1812 817 2205 1264 2454 2016 2507 3169 2710 5388 3137 9031
3000 3000 2178 264 2176 445 2431 644 2474 1191 3312 1901 3335 3459 3407 4362 3933 9390 4261 15243
4000 1000 1267 106 1733 262 1795 503 1524 809 2133 1198 2388 2024 2357 2436 2488 4053 2774 8010
4000 2000 1972 195 2235 408 2618 757 2845 1297 3201 1972 3511 3446 3505 4234 3550 7156 4085 14282
4000 3000 2629 344 3042 694 3766 1033 3808 1842 4419 2547 4771 4648 4890 7374 5065 14850 5514 20222
4000 4000 3226 527 3793 1046 4753 1560 6323 2353 5056 3168 5894 5610 6134 9890 6969 21306 6931 25829
5000 1000 2454 237 2114 544 2463 879 2199 1319 2665 1662 3052 2539 3096 4186 3417 8481 3566 10010
5000 2000 3424 411 2931 705 3523 1316 3869 2104 3915 2723 4703 4341 4526 7253 5450 15044 5340 17848
5000 3000 4493 586 3784 1013 3587 1536 5106 2594 5296 3508 6428 6691 5961 9961 7549 21130 7576 25322
5000 4000 5563 761 4637 1320 6445 2228 6119 2782 6516 3996 7955 8083 8084 14786 9650 26750 10132 41832
5000 5000 6712 1082 5646 1813 7845 2152 7417 3933 8115 5246 10081 11903 9675 17206 12192 36516 12662 56741
6000 1000 2816 323 2758 413 2787 1320 3129 1818 3380 2497 3928 4537 3799 5999 4614 11716 4756 17509
6000 2000 3939 562 3975 663 4436 2026 4616 2888 4926 4078 6082 7745 5745 10415 6952 20676 7364 31230
6000 3000 5164 802 5320 1131 5991 2328 6261 3582 6714 5262 8388 10470 7733 14325 9466 29003 9881 44185
6000 4000 6386 1042 6773 1892 7358 3029 7832 3886 8472 6028 10459 12663 9993 20075 11939 36691 12971 56482
6000 5000 7704 1424 8214 2676 8913 3751 9630 5228 10312 6390 12801 14403 12041 23384 14848 49269 15462 68062
6000 6000 9059 1940 9718 3464 10423 4837 11424 7434 12216 9084 15018 15630 14090 26133 17418 56495 19196 93462

Seating head

- Table B -

l
mm		 h
mm		 hwmm
1000 2000 3000 4000 5000 7500 10000 15000 20000
kg Nm kg Nm kg Nm kg Nm kg Nm kg Nm kg Nm kg Nm kg Nm
2000 1000 430 79 656 228 676 372 908 283 924 359 946 548 963 897 1311 1608 1316 2147
2500 1000 543 99 779 282 1048 256 1048 349 1086 444 1124 826 1414 1119 1482 1993 1613 3079
2500 1500 786 151 959 348 1221 330 1242 463 1301 730 1338 1134 1661 1816 1764 3194 1941 4756
2500 2000 1023 197 1136 452 1497 554 1468 678 1554 893 1607 1673 1973 2633 2172 4493 2410 6943
3000 1000 905 194 1150 192 1174 304 1203 417 1245 530 1614 1176 1382 1846 1850 2753 1874 4063
3000 2000 1219 236 1559 248 1644 556 1693 809 1775 1063 2215 1997 2738 3158 2710 6154 2755 7257
3000 3000 1647 425 2070 438 2217 742 2284 1175 2454 1862 3029 3428 3168 4340 3478 9333 3933 15194
4000 1000 1154 168 1490 258 1523 406 1832 562 1940 1181 2143 1999 2130 2098 2437 5010 2687 7997
4000 2000 1658 318 2147 413 2180 744 2503 1270 2684 1925 2950 3419 3004 3637 3624 8865 3889 14253
4000 3000 2275 675 2822 703 2937 996 3336 1799 3531 2467 3881 4605 3979 4999 4942 14831 5433 22822
4000 4000 3028 512 3670 1074 3877 1522 4212 2140 4465 3108 5622 6906 5102 6197 6416 21212 7126 33345
5000 1000 1672 133 1799 322 2125 514 2353 864 2493 1645 2669 3686 2717 2626 3407 5090 3652 12927
5000 2000 2288 238 2615 608 2991 935 3357 1613 3840 2715 3991 6293 4133 4572 5176 13282 5950 23139
5000 3000 2941 342 3471 883 3921 1243 4492 2291 5143 3492 5263 8463 5427 6279 7363 21098 8034 32751
5000 4000 3719 648 4408 1164 5102 2387 5671 2737 6525 4564 6404 10200 7252 14661 9400 26708 9409 41693
5000 5000 4517 926 5298 1659 6051 2945 6886 3872 7966 5277 7713 11550 9233 17144 11805 36448 11777 56550
6000 1000 2026 164 2491 398 2690 765 2962 1050 2920 2252 3171 4477 3211 40037 4101 11617 4470 10089
6000 2000 2882 297 3485 630 3850 1349 4340 1966 4154 3982 5328 7635 5048 6990 6611 20610 6584 17960
6000 3000 3912 626 4383 1056 5369 1789 4608 2688 5578 5120 7190 10291 5384 9638 8814 28881 9539 39227
6000 4000 4931 948 5462 1593 6773 2594 5703 3189 7039 5849 9534 12525 9171 11972 11624 36630 12404 56724
6000 5000 5993 1302 6957 2219 8214 3670 7241 4928 8283 6136 11681 14235 11938 23316 14672 49231 15497 74109
6000 6000 6978 1551 8336 3291 9718 4749 8623 7015 10023 8756 13999 17465 14043 26125 17007 56406 18802 93362

NOTES:

The tables show some ”examples” of penstocks. All other dimensions, even the rectangular ones, can be manufactured.

SERECO reserves to recalculate all the penstocks subject of the request for quotation according to the actual dimensions and operating conditions that will be communicated each time through the form “PSF”.

In the tables it has been considered the level h1= h x 2 +1000mm.



LEGEND:

Kg: the weights refer to standard channel mounted penstock with handwheel only or, when necessary, with handwheel and gearbox; the weights do not include the weight of the possible electric actuator.

Nm: necessary torque to operate the driving screw.
A’: door thickness.
A=B: housing for penstock installation.

SERIE:

S extra light
L light
M medium
P heavy
PT extra heavy
